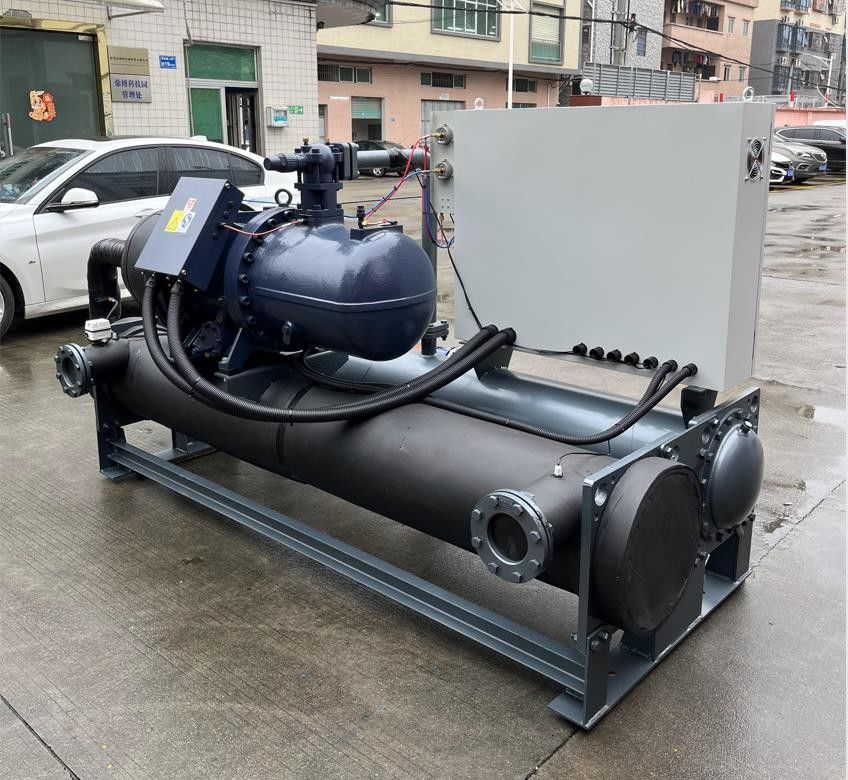

JLSW-120D Stable Water Cooled Water Chiller With PLC Microprocessor Control
Product Details:
| Place of Origin: | Dongguan China |
| Brand Name: | JIALIS |
| Certification: | CE/ISO9001 |
| Model Number: | JLSW-120D |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Discuss |
| Packaging Details: | Plywood wooden box |
| Delivery Time: | 20 days |
| Payment Terms: | T/T |
| Supply Ability: | 100 units per month |
|
Detail Information |
|||
| Product Name: | Water Cooled Screw Chiller | Cooling Temperature: | 5℃-35℃ |
|---|---|---|---|
| Compressor Type: | Screw Compressor | Compressor Brand: | Hanbell |
| Cooling Capacity: | 100-1000kW | Control System: | PLC |
| Controller: | Microprocessor Control | Evaporator: | Shell And Tube |
| Condenser: | Shell And Tube | Noise Level: | ≤75dB(A) |
| Protection: | Compressor Overload, High/Low Pressure, Water Flow, Phase Sequence, Anti-freezing | Refrigerant: | R22/R407C/R134A/R410A |
| Voltage: | 380V/3N/50Hz | Power Supply: | 380V/3N/50Hz |
| Warranty: | 1 Year | ||
| Highlight: | Stable Water Cooled Water Chiller,Microprocessor Water Cooled Water Chiller,water screw chiller PLC |
||
Product Description
JLSW-120D Water Cooled Screw Chiller High Refrigeration Efficiency, Good Stability, Low Noise And High Reliability
Product Description:
Water-cooled screw chiller is a kind of refrigeration equipment for industrial use, mainly used to provide cooling and air conditioning services for large buildings such as factories, commercial centers, and office buildings. It lowers the temperature of water by circulating refrigerant, so that cold water is delivered to the area that needs to be cooled to achieve the effect of cooling, dehumidification and keeping the air fresh.
The main components of a water-cooled screw chiller are compressors, condensers, evaporators, and throttle valves. Among them, the screw compressor is the core part of the whole system, which increases its temperature and pressure by compressing the refrigerant, makes it dissipate heat in the condenser and cools it down, and then absorbs heat in the evaporator and lowers the temperature, forming cold water recirculation use.
The water-cooled screw chiller has the characteristics of high cooling efficiency, large cooling capacity, stable operation, low noise, and easy maintenance. It is suitable for places that require a lot of cooling, such as large buildings and industrial manufacturing enterprises. However, its installation and use costs are high, and it requires a large space and power energy support, so it is generally used for large-scale projects and commercial purposes.
Production Features:
Water-cooled screw machine is a commonly used refrigeration equipment with the following characteristics:
1.High efficiency and energy saving: The water-cooled screw machine adopts twin-screw compressors, which has the characteristics of high efficiency and energy saving. Twin-screw compressors have higher refrigeration efficiency and lower energy consumption than traditional single-screw compressors.
2.Stable and reliable: The operation of the water-cooled screw machine is stable and reliable, and has the characteristics of long life. Its structure is simple, maintenance is convenient, and it can meet the needs of different users.
3.Controllable energy consumption: The water-cooled screw machine can control energy consumption according to actual needs, and realize precise control through the control system, so as to achieve the purpose of energy saving.
4.Environmental protection and energy saving: The water-cooled screw machine adopts environmentally friendly refrigerants, which have low greenhouse effect and zero ozone layer destruction potential, and meet environmental protection requirements.
5.Wide range of application: The water-cooled screw machine has a wide range of applications and can be widely used in air conditioning, cold storage, industrial refrigeration and other fields.
6.Low noise: The noise of the water-cooled screw machine is low, which can meet the needs of noise-sensitive occasions.
7.Strong flexibility: The installation and use of water-cooled screw machines are very flexible, and can be customized and installed according to different places and equipment requirements.
In short, the water-cooled screw machine has the advantages of high efficiency and energy saving, stability and reliability, controllable energy consumption, environmental protection and energy saving, wide application range, low noise, and strong flexibility. It can meet the needs of different users and is a very practical refrigeration equipment.
Working Principle:
The working principle of the water-cooled screw chiller mainly includes four processes of compression, condensation, expansion and evaporation.
1.Compression process: Under the action of the screw compressor, the refrigerant is compressed into a high-temperature and high-pressure gas, while absorbing the surrounding heat.
2.Condensation process: High-temperature and high-pressure refrigerant enters the condenser, and through contact with cold water or surrounding air, it emits heat and cools into a high-pressure liquid.
3.Expansion process: The high-pressure liquid refrigerant enters the evaporator through the throttle valve, the pressure drops suddenly, and the liquid refrigerant expands into a low-pressure refrigerant while absorbing the surrounding heat.
4.Evaporation process: The low-pressure refrigerant enters the evaporator, absorbs surrounding heat through contact with water or air, turns into a low-temperature and low-pressure refrigerant, and returns to the compression process.
Through such a cycle process, the water-cooled screw chiller can deliver cold water to the area that needs to be cooled to achieve the effects of cooling, dehumidification and keeping the air fresh. At the same time, the water-cooled screw chiller will also emit a certain amount of heat, which needs to be dissipated through cooling towers or other heat dissipation equipment to ensure the normal operation of the system.
Techinical Parameters:
| Model | JLSW-30D | JLSW-40D | JLSW-50D | JLSW-60D | JLSW-80D | JLSW-100D | JLSW-120D | JLSW-150D | ||
| Cooling capacity | KW/h | 100 | 140 | 180 | 200 | 260 | 370 | 430 | 550 | |
| TR | 28.5 | 39.8 | 51.2 | 56.9 | 73.9 | 105.2 | 122.3 | 156.4 | ||
| Temperature range | 5℃~35℃(Below 0℃ can be customized) | |||||||||
| Power supply | 3N-380V/415 50HZ/60HZ | |||||||||
| Compressor | Type | Semi-hermetic screw | ||||||||
| Power | KW | 22 | 30 | 36 | 41 | 56 | 80 | 93 | 118 | |
| electric current | A | 39 | 51 | 65 | 71 | 95 | 135 | 156 | 198 | |
| Refrigerant | Type | R22/R407c | ||||||||
| Control method | Temperature Sensing External Pressure Equalizing Expansion Valve | |||||||||
| filling volume | Kg | 16.5 | 22.2 | 27.5 | 33.4 | 44.4 | 55.6 | 66.5 | 82.6 | |
| Evaporator | shell and tube | |||||||||
| Flow | m³/h | 17.2 | 22.4 | 29.3 | 33 | 43.9 | 64.2 | 75.2 | 95.3 | |
| Diameter | inch | G2.5" | G3" | G3" | G3" | G3" | G4" | G4" | G4" | |
| Compressor | Type | shell and tube | ||||||||
| Flow | m³/h | 22.4 | 29.2 | 35.2 | 42.9 | 57.8 | 84.3 | 101.1 | 123.9 | |
| Diameter | inch | G2.5" | G3" | G3" | G3" | G3" | G4" | G4" | G4" | |
| Protective device | High and low pressure switch, antifreeze protection, fusible plug/safety valve, overload protection device, coil overheat protector, automatic temperature protection switch, etc. | |||||||||
| Machine size | L | mm | 2200 | 2250 | 2350 | 2450 | 2500 | 2900 | 3000 | 3000 |
| W | mm | 800 | 800 | 800 | 900 | 900 | 900 | 1500 | 1500 | |
| H | mm | 1500 | 1600 | 1650 | 1750 | 1800 | 1850 | 1500 | 1550 | |
| Unit weight | Kg | 960 | 990 | 1260 | 1380 | 1520 | 1830 | 2150 | 2580 | |
| Model | JLSW-170D | JLSW-200D | JLSW-230D | JLSW-260D | JLSW-280D | JLSW-310D | JLSW-350D | JLSW-400D | ||
| Cooling capacity | KW/h | 620 | 710 | 830 | 930 | 1020 | 1130 | 1270 | 1530 | |
| TR | 176.3 | 201.9 | 236 | 264.4 | 290 | 321.3 | 361.1 | 435 | ||
| Temperature range | 5℃~35℃(Below 0℃ can be customized) | |||||||||
| Power supply | 3N-380V/415 50HZ/60HZ | |||||||||
| Compressor | Type | Semi-hermetic screw | ||||||||
| Power | KW | 130 | 150 | 175 | 200 | 225 | 250 | 281 | 325 | |
| electric current | A | 218 | 253 | 295 | 335 | 390 | 432 | 480 | 553 | |
| Refrigerant | Type | R22/R407c | ||||||||
| Control method | Temperature Sensing External Pressure Equalizing Expansion Valve | |||||||||
| filling volume | Kg | 93.8 | 111.2 | 126.8 | 144.1 | 155.4 | 170.9 | 193.2 | 220.9 | |
| Evaporator | shell and tube | |||||||||
| Flow | m³/h | 108.6 | 126.3 | 144.9 | 163.8 | 176.4 | 196.5 | 222.4 | 252.6 | |
| Diameter | inch | G5" | G5" | G6" | G6" | G8" | G8" | G8" | G8" | |
| Compressor | Type | shell and tube | ||||||||
| Flow | m³/h | 141.1 | 166.2 | 190.9 | 215.8 | 232.4 | 258.6 | 290.8 | 333.2 | |
| Diameter | inch | G5" | G5" | G6" | G6" | G8" | G8" | G8" | G8" | |
| Protective device | High and low pressure switch, antifreeze protection, fusible plug/safety valve, overload protection device, coil overheat protector, automatic temperature protection switch, etc. | |||||||||
| Machine size | L | mm | 3600 | 3600 | 3600 | 3650 | 3650 | 3700 | 3700 | 4200 |
| W | mm | 1500 | 1500 | 1500 | 1600 | 1650 | 1750 | 1750 | 1750 | |
| H | mm | 1650 | 1650 | 1700 | 1700 | 1700 | 1750 | 1800 | 1800 | |
| Unit weight | Kg | 3050 | 3200 | 3450 | 3780 | 4060 | 4330 | 4600 | 4820 | |
Application Industry:
Water-cooled screw machine is a kind of refrigeration equipment widely used in various industries. Its main application fields include the following aspects:
1.Industrial fields: Water-cooled screw machines are widely used in industrial fields, such as steel, chemical, electric power, pharmaceutical and other industries. It can provide precise temperature and humidity control for industrial production, ensuring the stability and quality of the production process.
2.Commercial field: Water-cooled screw machines are also widely used in commercial fields, such as supermarkets, hotels, cinemas, office buildings, etc. It can provide a comfortable indoor environment for commercial spaces, improving the comfort and satisfaction of employees and customers.
3.Medical field: Water-cooled screw machines are also used in the medical field. Hospitals, laboratories, etc. require precise temperature and humidity control, and the water-cooled screw machine can provide precise control to ensure the stability and quality of equipment and samples.
4.Agricultural field: Water-cooled screw machines are also used in agricultural fields, such as greenhouses, flowers, vegetables and other planting fields. It can provide precise temperature and humidity control for crops, improving crop quality and yield.
In short, as an efficient, stable and reliable refrigeration equipment, the water-cooled screw machine is widely used in various fields, providing convenience and guarantee for people's production and life.
Automotive Manufacturing Chemical Engineering Electronics Industry Electroplating Industry
Injection Molding Industry Pharmaceutical Industry Plastic Packaging Industry Printing Industry
Upport and Services:
Air Cooled Chiller technical support and service includes:
1. 24/7 customer support
2. Remote guidance installation and maintenance
3. Remote Diagnostics and Troubleshooting
4. Phone/Email Advice and Guidance
5. User friendly documentation and manuals
6. Software Updates and Upgrades
7. Cost price of spare parts and consumables
Packing and Shipping:
Air-cooled chillers are packaged and shipped in standard plywood wooden boxes. All components are secured and protected with a film, and the unit is then placed on a pallet for easy transport. And affix the shipping mark information label on the wooden box to ensure correct delivery.
What maintenance methods can prolong the service life of the screw machine?
When the daily operation of the screw machine is properly maintained and maintained, it can prolong its life and improve its efficiency. Here are some ways to maintain and maintain the screw machine:
1.Change filters regularly: Filters keep dust, dirt, and foreign matter from entering the screw machine, and changing filters regularly prevents them from clogging the flow of air or water, which can lead to poor performance and damage to the screw machine.
2.Regular cleaning of the screw machine: Regular cleaning of the cooling tower of the water-cooled screw machine and the external surface and radiator of the air-cooled screw machine can maintain the heat dissipation effect and reduce the damage of the screw machine.
3.Regular inspection and replacement of lubricating oil: The lubricating oil of the screw machine needs to be replaced regularly to ensure the normal operation of the equipment and prevent wear and tear of the components.
4.Regularly check the electrical system of the screw machine: Checking the electrical system can avoid failures caused by short circuits, loose wiring or aging cables.
5.Regularly check the working pressure of the screw machine: Checking the working pressure can ensure the screw machine is working properly and prevent damage caused by excessive pressure.
6.Regularly check the mechanical parts of the screw machine: Checking the mechanical parts can prevent the screw machine from functioning properly due to wear or damage.
7.Regular maintenance: Regular maintenance, including inspection, cleaning, replacement of parts, etc., can prevent problems caused by long-term use of the screw machine and prolong the life of the equipment.
The maintenance of the screw machine needs to be carried out according to the actual situation, and the above methods are for reference only. In actual operation, maintenance should be carried out according to the usage of the equipment and the manufacturer's recommendations.
